The Modular Trench Grate and Drain Innovation!

CLICK DRAIN ® is an innovative system that uses stainless steel and seamless technology to develop a modular drainage system that is not only high quality and sustainable, but also easy to install using unique ‘click’ together fittings. Capturing twenty-one years’ worth of market research, the system has been designed and built for building and plumbing convenience.

This drainage system creates a seamless finish and can fit perfectly into any environment. Built to Australian standards, you can be guaranteed a superior product with a luxury edge. Every aspect of CLICK DRAIN ® has been carefully considered to ensure that the drains offer maximum efficiency.

CLICK DRAIN ® Modular linear drainage.

The Unique Qualities of CLICK DRAIN ®

CLICK DRAIN ® is an original product that enables plumbers and builders to efficiently and quickly style the drain to suit the specific requirements while being on site. The click together system creates ultimate ease during installation and consists of all the necessary sections that are required, including:

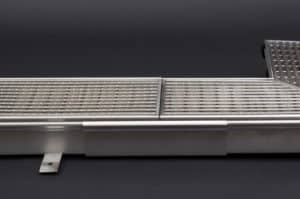

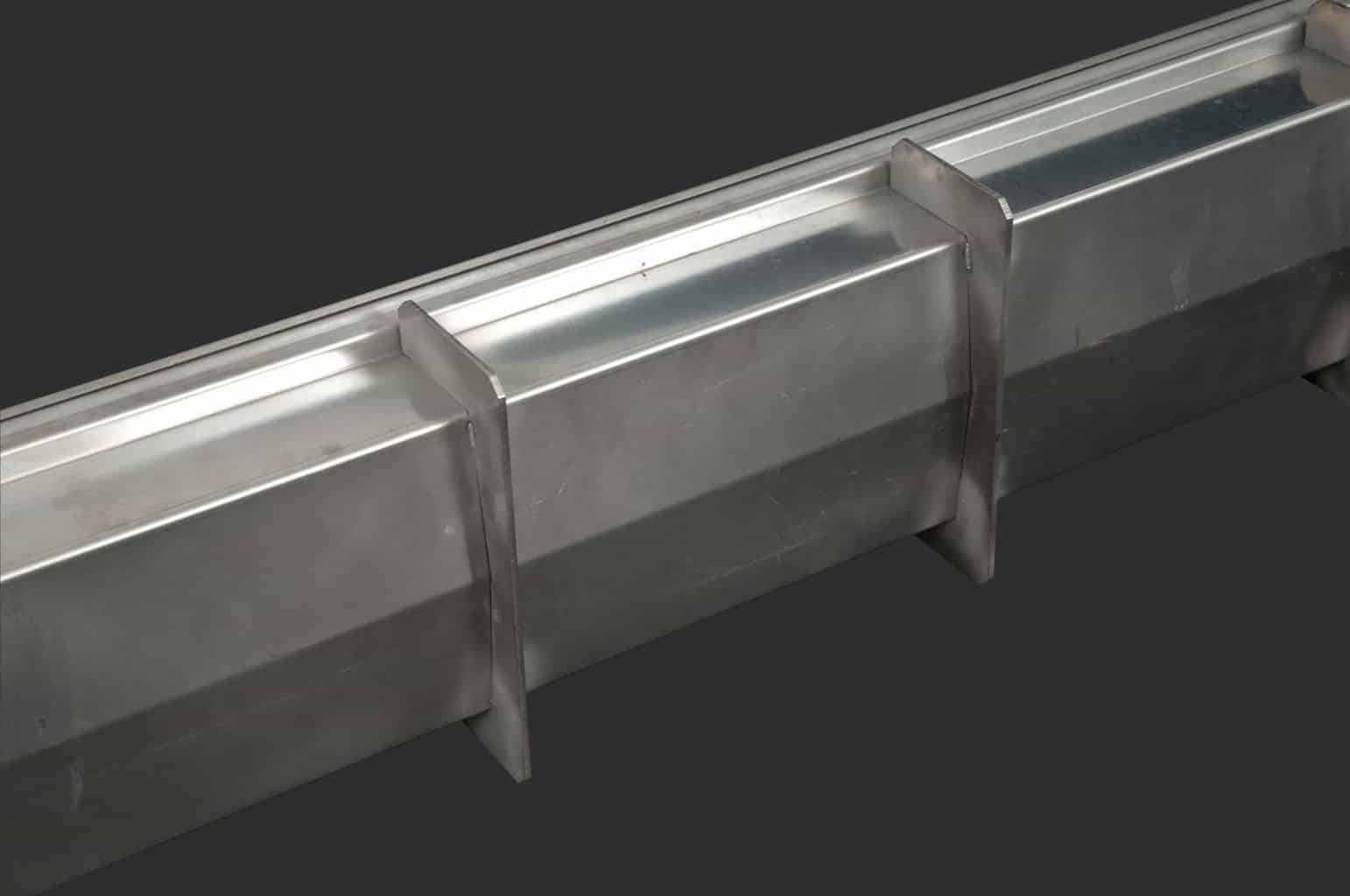

  • Joiner sections

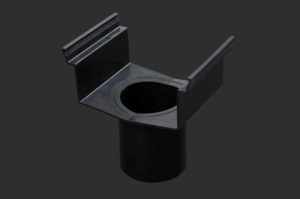

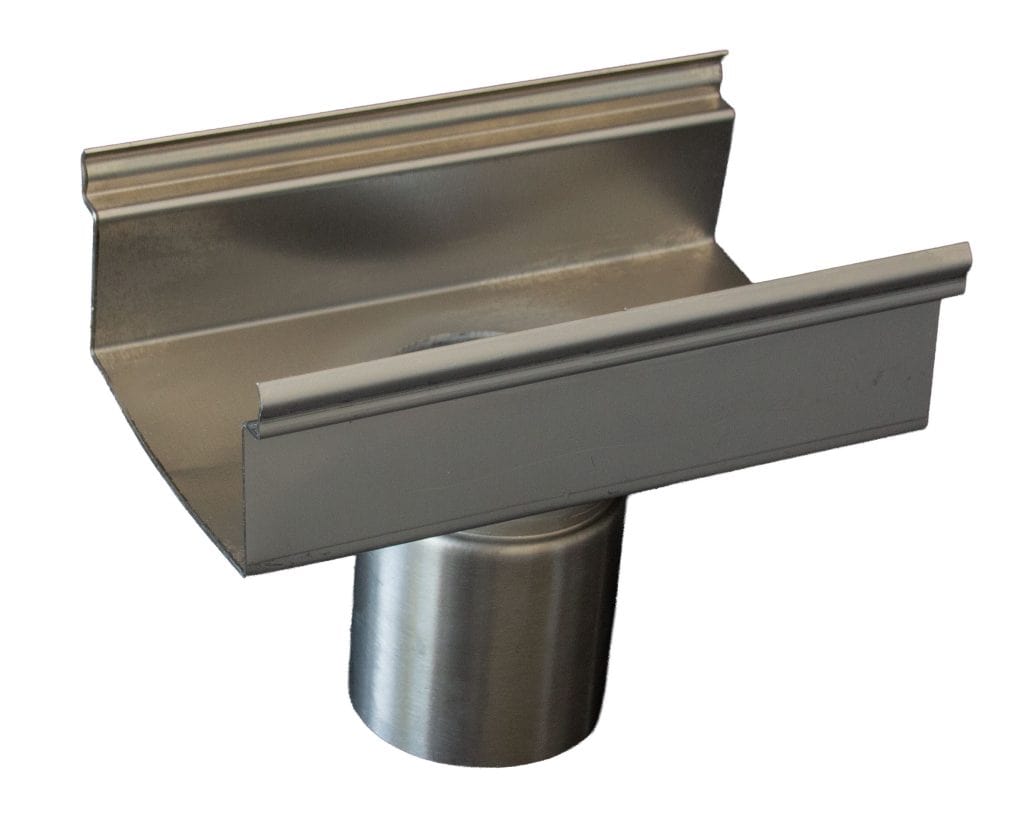

  • Outlets sections

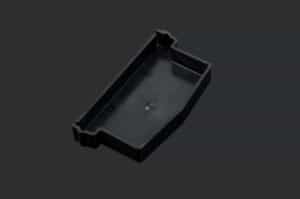

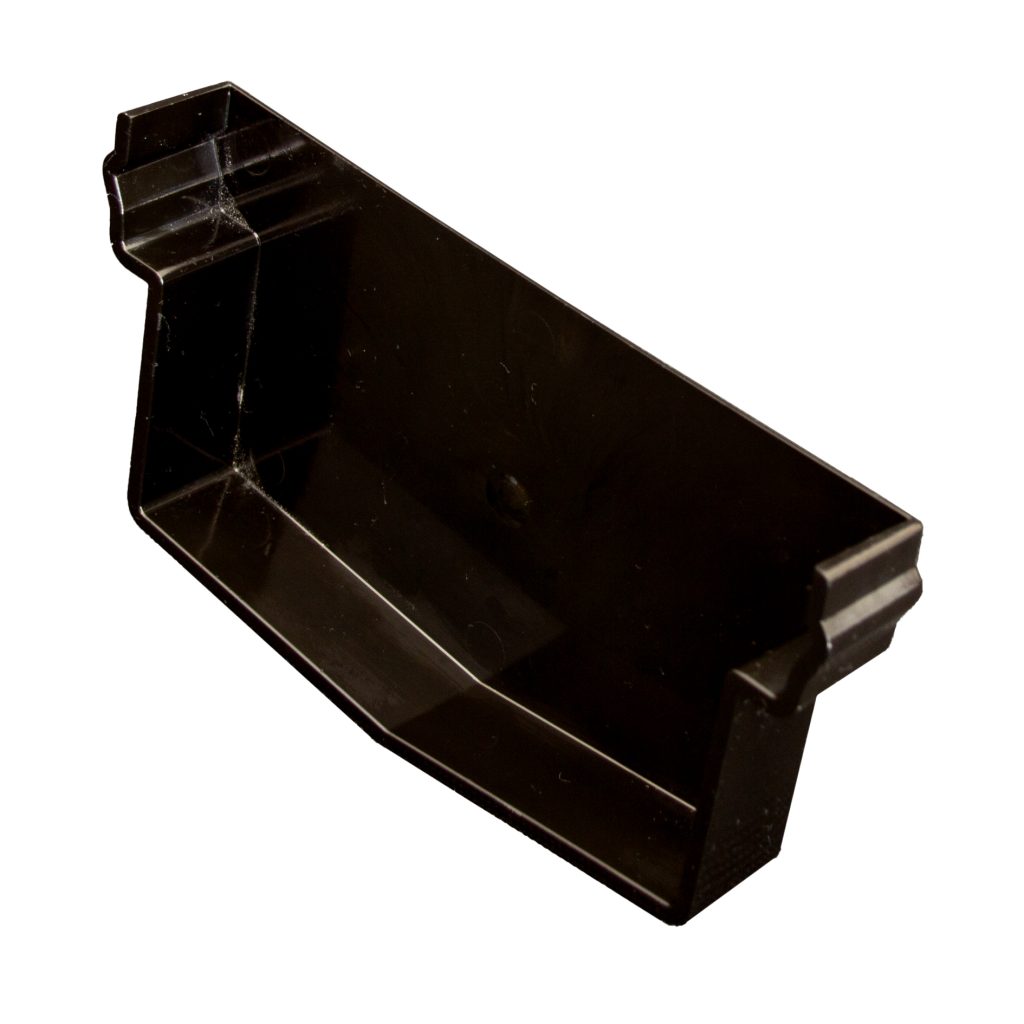

  • Stop ends
  • Change of direction sections

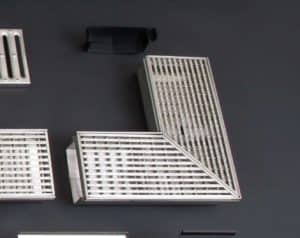

CLICK DRAIN ® comes in lengths of 1, 2 or 3 meters and is available as a stock item, so you don’t need to worry about late ordering or downtime. Both 45 and 90-degree sections are available for change of direction, and the current clear opening size is the standard 100mm.

CLICK DRAIN ®: The Benefits

CLICK DRAIN ® has been designed for aesthetics, as well as functionality. With that in mind, manufacturers focused on a timeless material that would provide maximum durability, while light weight compared to traditional products made of concrete or polymer.

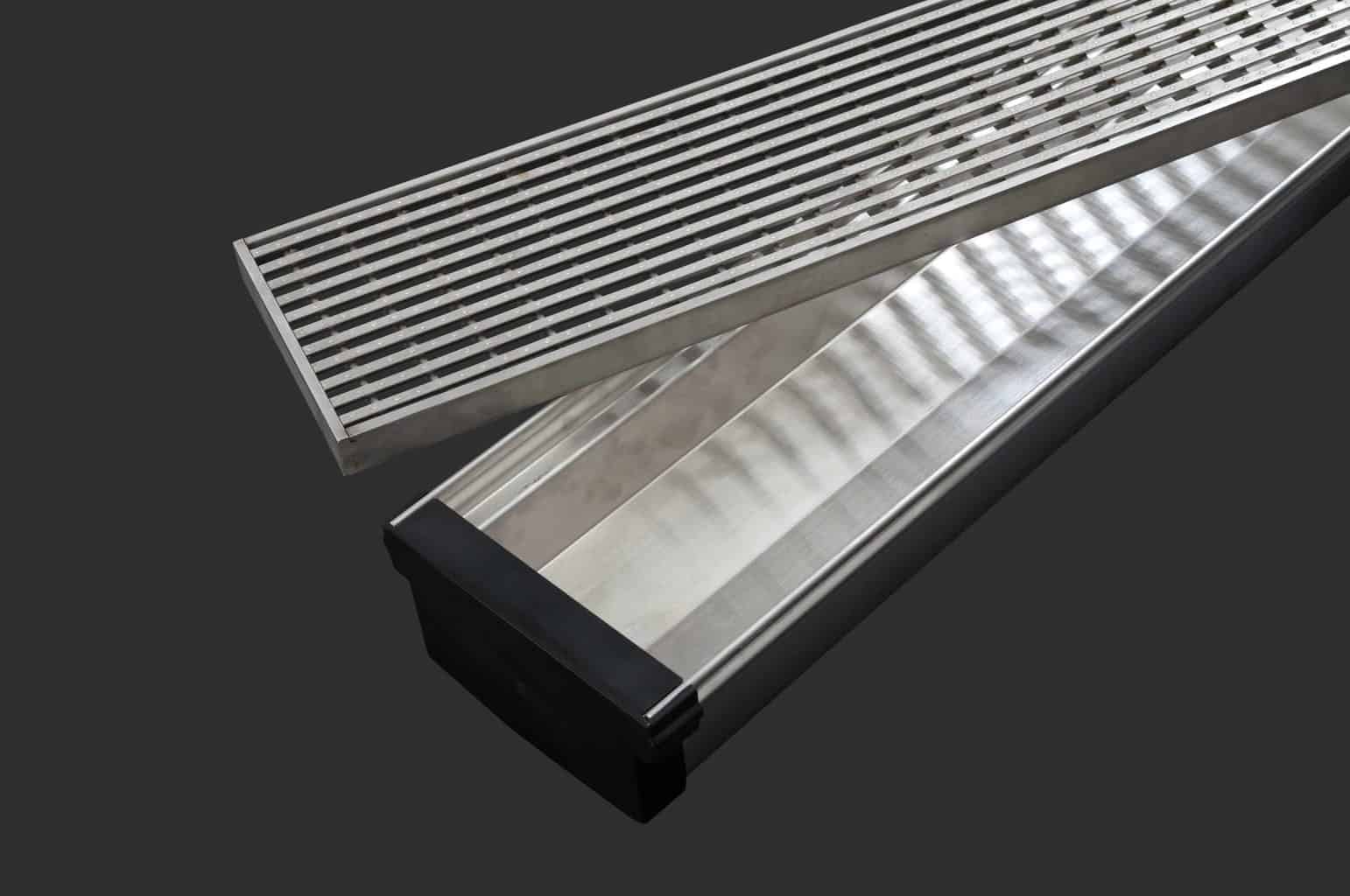

These innovative drains have a full stainless steel edge profile. Two-meter channel length weighs in at only 7 KG as opposed to polymer or concrete at 15 KG – that’s over half the weight. The decreased weight makes installation easier, quicker and safer. With CLICK DRAIN ®, you can reduce potential health and safety weight lifting risks that come with regular sections. Stainless steel is also a durable material that’s low maintenance and enduring. Resistant to chemicals, the drains won’t corrode or rust; they’re made to last.

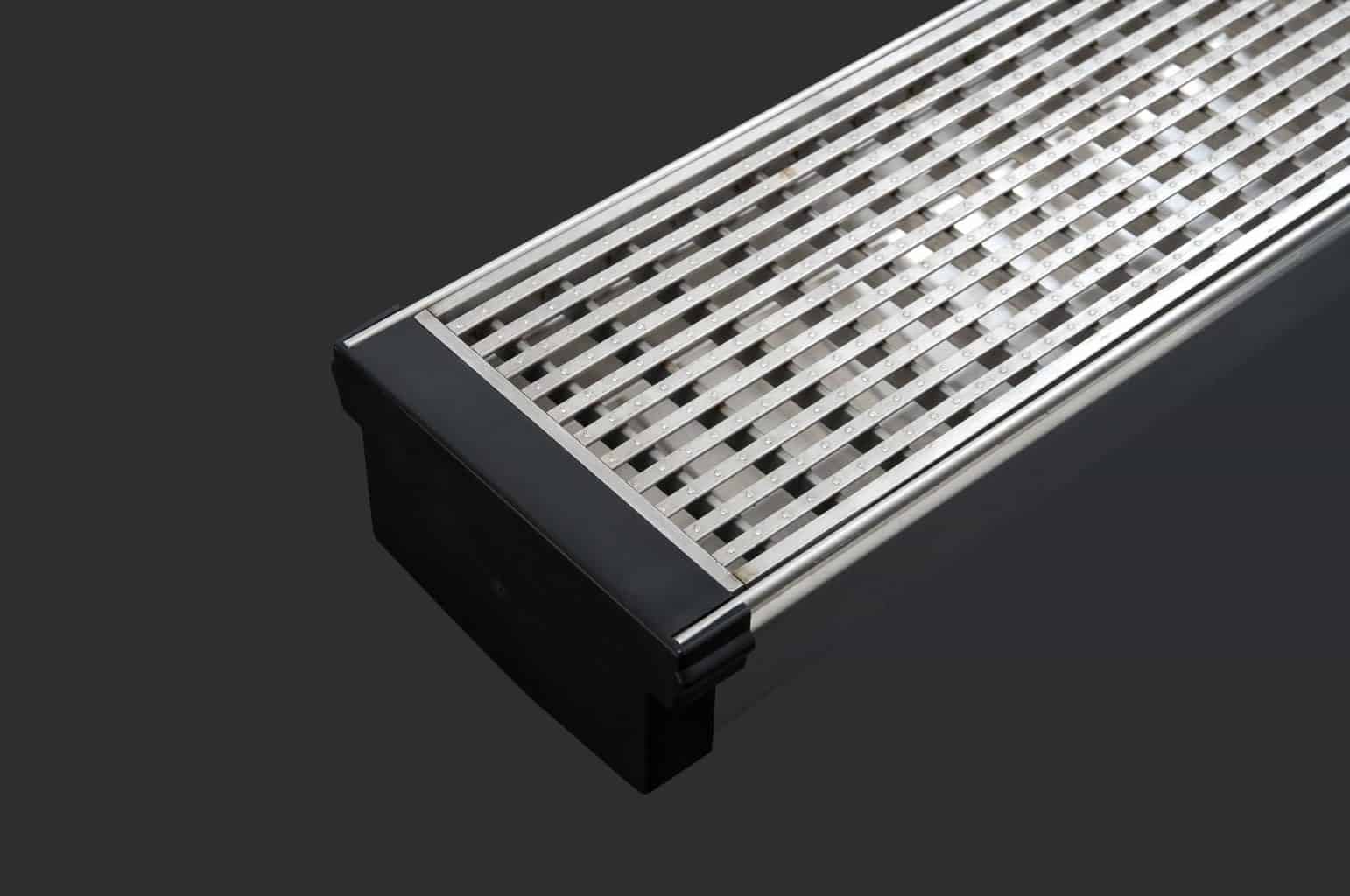

The sections and components just ‘click’ together for ultimate convenience, so you can directly click on the drain terminating ends. The channel lengths can be cut on site to suit the particular requirements of the installation. Unlike concrete that creates dust when it’s cut, the stainless steel sections are safe for the installer and also the environment. If you need to cut the channel lengths, CLICK DRAIN ® doesn’t require any specific equipment; conventional tools are compatible.

There are also many other advantages to CLICK DRAIN ® systems, including:

  • Stainless steel components are Green Tag Certified
  • To reduce installation time and increase accuracy, they come in 1 to 3-meter channel lengths
  • Due to the lightweight construction of these products, it’s much cheaper to transport the channel sections to their site location
  • If a channel length gets dropped, it will not shatter or crack
  • The products are Australian Stainless Steel Association (ASSDA) accredited
  • High quality and self-supporting, the CLICK DRAIN ® system requires no concrete
  • CLICK DRAIN ® provides you with a seamless, luxury finish

CLICK DRAIN ® 200 Series

  • 316/304 Grade
  • R11/R12 Slip resist AS/NZS 4586:2013 Appendix D.
  • Load class A,B,C,D-To AS/NZS AS3996:2006
  • Bike Safe -AS 3996 (clause 3.3.6)
  • Easy Site install with Mitres/Ends/Outlets
  • Easy Lock Feature

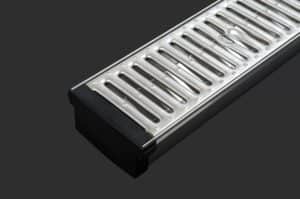

  • Heelguard
  • All fittings stainless steel

Download CLICK DRAIN ® 200 Series

Download CLICK DRAIN ® 200 Series – 1m Trough

Download CLICK DRAIN ® 200 Series – 2m Trough

Download CLICK DRAIN ® 200 Series – Assembled

CLICK DRAIN ® Component Gallery

Download Brochure

Download our Click Drain ® Linear Surface Water Drainage Brochure.


  • 316/304 Grade
  • R11/R12 Slip resist AS/NZS 4586:2013 Appendix D.
  • Load class A,B,C,D – To AS/NZS AS3996:2006
  • Bike Safe – AS 3996 (clause 3.3.6)
  • Easy Site install
  • Easy Lock Feature
  • Heelguard
  • All fittings stainless steel
  • Outlet position / size to suit each job, multiple available
  • Multiple trough inlet points available
  • Inlet points match to 100 or 200 series channel
  • See size options below
Clear Sump Box Opening Sizes Available:
  • 300 x 300 x 300 Depth
  • 450 x 450 x 450 Depth
  • 600 x 600 x 600 Depth

* More sizes available on request

CLICK DRAIN ® Sump Box Gallery

Download our CLICK DRAIN ® Sump Box Spec Sheet

Find out More by Calling Us Today!

If you’re interested in the CLICK DRAIN ® system for an upcoming project, feel free to get in touch with us today. Whatever information you require, we’re always happy to assist you in any way that we can. The multiform drainage system uses HEELGUARD enhance water flow grates which are lightweight, resistant to chemicals and low maintenance. CLICK DRAIN ® can be safely customized and installed into any situation making the system versatile and practical.
